| Model | Overall Length | Overall Height | Overall Width | Tank Capacity | Tare Weight | Pump Capacity |
|---|---|---|---|---|---|---|

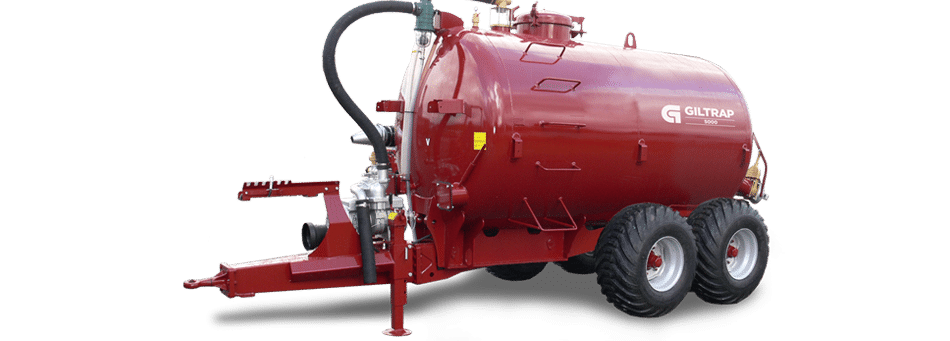

| 5000 | 5.45m | 2.40m | 2.50m | 5250 litres | 2130kg | 6500 l/min |
| 7500 | 6.70m | 2.45m | 2.50m | 7700 litres | 2600kg | 8000 l/min |
| 10000 | 6.80m | 2.90m | 2.50m | 10050 litres | 3750kg | 12000 l/min |
| 12000 | 6.50m | 3.10m | 2.80m | 12050 litres | 3900kg | 12000 l/min |
| 15000 | 6.85m | 3.10m | 2.80m | 15050 litres | 4400kg | 12000 l/min |

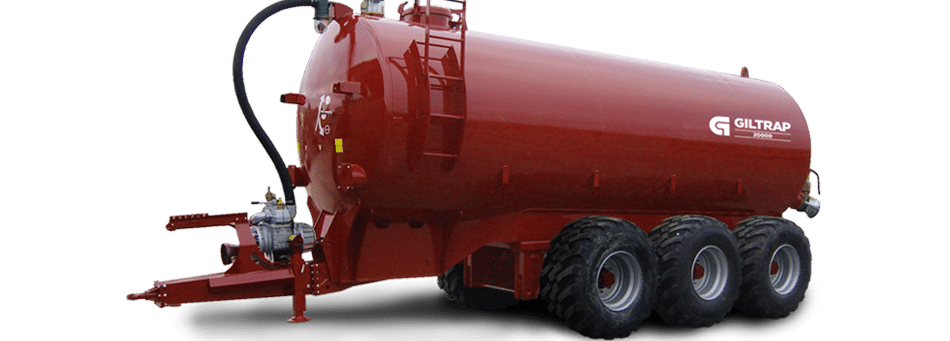

| 20000 | 8.50m | 3.20m | 2.65m | 20000 litres | 7700kg | 12000 l/min |
Models
Key features
Top quality European components ensure constant, reliable handling of effluent, day in and day out. The tank is manufactured from 5mm plate steel, with 6mm domed ends and a strong integrated chassis giving the tank support throughout its entire length.
Also available is the Hydraulic Suspension drawbar minimising stress to the tank/drawbar and giving superior ride to the operator. The ability to change the angle of the tank by 3 degrees, to help discharge of thick slurry, is also achieved using this hydraulic suspension drawbar.
The vacuum pump used is a Battioni Pagani rotary vane type, which is very low maintenance, and efficiently handles the day-to-day duty cycles of a farm effluent spreader. The tanks are built to an exacting standard, and are individually pressure tested to twice the recommended working pressure, guaranteeing build quality and safety in the field.
KEY FEATURES
- Battioni Pagani vacuum pump
- Tandem axle
- Strong integrated chassis and drawbar
- Internal baffle plate to prevent surging
- Separate filling points
- Access points for easy cleaning
- Level indicator
- Lightweight sectioned suction hoses for easy handling
- Brass and galvanised fittings for corrosion protection
- Double moisture trap system
- Hose racks on left or right hand side
- Epoxy paint inside the tank to reduce corrosion
