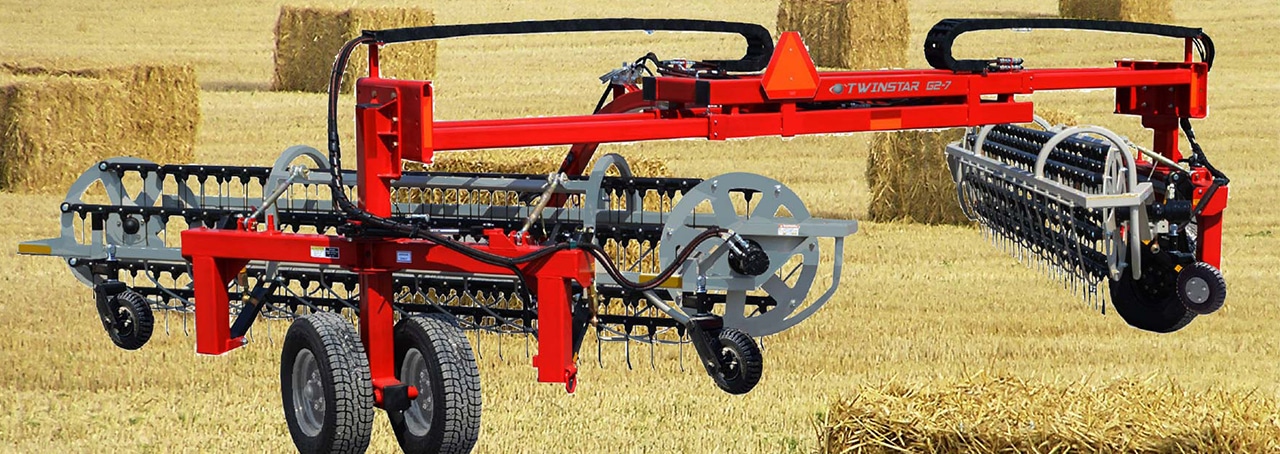

The Twinstar Generation 2 Basket Rake

Features Model 2027G2-7 Model 2030G2-7
Slide Tubes Double Pair Double Pair
Maximum Raking Width Up to 27′ Up to 30′
Transport Width 10′-9″ 10′-9″
Overall Length 19′-5″ 20′-2″
Approximate Weight 5100 lbs 5600 lbs
Tire Size (4) LT235/75R15 (4) LT235/75R15
Rubber Mounted Tines Standard: 154 per basket Optional: 224 per basket Standard: 175 per basket Optional: 259 per basket
Basket Reel Speed Maximum 90 RPM Maximum 90 RPM
Tine Bar Bearings Precision Sealed ball bearings Precision Sealed ball bearings
Hydraulic Requirement 12 gallons/minute @ 2000 PSI Tractor with single hydraulic remotes 12 gallons/minute @ 2000 PSI Tractor with single hydraulic remotes
Operating Speed Up to 10 MPH Up to 10 MPH
Gauge Wheels Optional Front and Rear Optional Front and Rear

Features

  • 7 Bar Baskets are equipped with 30″ diameter drive & idler wheels laser cut from 3/8″ high strength steel
  • 7 Bar Baskets make fluffier, more uniform windrows for faster drying time
  • 7 Tine Bar design allows for higher ground speeds up to 10 MPH
  • 7 Bar Baskets are designed to handle heavier crops
  • 7 Bar Baskets allow the operator to rake longer in the day, accomplished by slowing basket RPM speed which minimizes leaf loss
  • Specially designed hydraulic manifold limits flow to hydraulic motors and valve, providing exceptional protection to the rake’s hydraulic system. Requires only 12 gallons per minute to operate the rake
  • Hydraulic drive motors are mounted to a separate bearing housing and shaft assembly which in turn is mounted to the drive wheel and basket assembly for increased strength and reliability
  • Basket rake assemblies are equipped with torsion axles which provide a superior suspension versus spring protection
  • Basket Frames are designed for durability & are equipped with gauge wheel mounting brackets front & rear
  • Parallel basket linkage provides heavy-duty basket support and precision alignment
  • Idler end of the basket is equipped with a self-aligning idler hub. This unique feature ensures precision tine bar, bearing and hub alignment which provides years of trouble free service
  • Equipped with 6 function electric-hydraulic valve w/ independent raising & lowering of baskets or together
  • Rake design includes double extension tubes for increased strength. The interior walls of the outer tubes are equipped with UHMW strips to reduce friction and insure a smooth operation
  • Generation 2 Rakes are equipped with unique “Hose Trac” system that provides total hose protection when extending and closing the basket extension tubes
  • Basket assemblies are shear bolt protected with double-shear angle cylinder mounts
  • Transport light kit per ASABW / ANIS279
  • G3 Series split hoses with JIC fittings at end of slide tubes for serviceability
