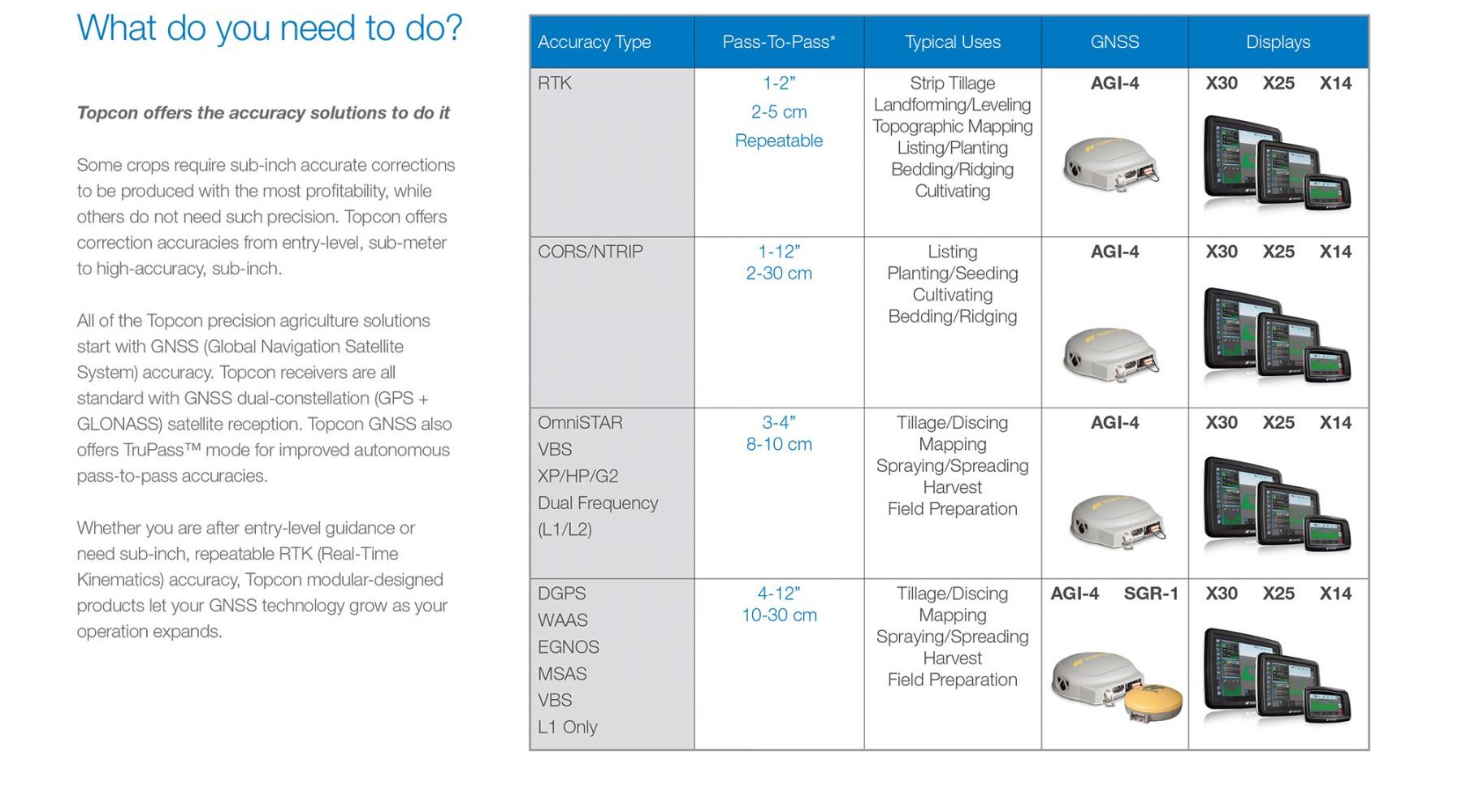

Topcon offers the accuracy solutions to do it

    Some crops require sub-inch accurate corrections to be produced with the most profitability, while others do not need such precision. Topcon offers correction accuracies from entry-level, sub-meter to high-accuracy, sub-inch.
    All of the Topcon precision agriculture solutions start with GNSS (Global Navigation Satellite System) accuracy. Topcon receivers are all standard with GNSS dual-constellation (GPS + GLONASS) satellite reception. Topcon GNSS also offers TruPass™ mode for improved autonomous pass-to-pass accuracies.
    Whether you are after entry-level guidance or need sub-inch, repeatable RTK (Real-Time Kinematics) accuracy, Topcon modular-designed products let your GNSS technology grow as your operation expands.

    Models

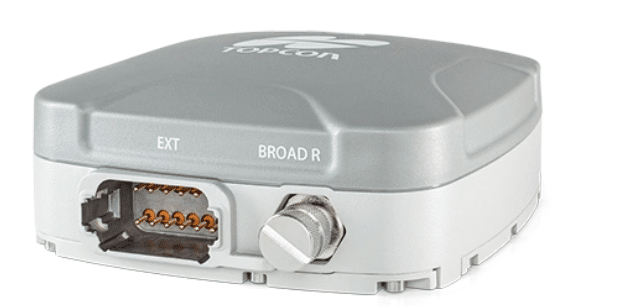

    Designed to suit virtually any agricultural machine type, make and model, the Topcon AGS-2 receiver and steering controller combines field-proven steering with leading network reception and tracking functionality. Fully capable in any application, the AGS-2 comes standard with WAAS and EGNOS correction services and is easily upgradeable to leading accuracy utilizing NTRIP and the optional RTK radio in the Topcon CL-55 cloud connectivity device.

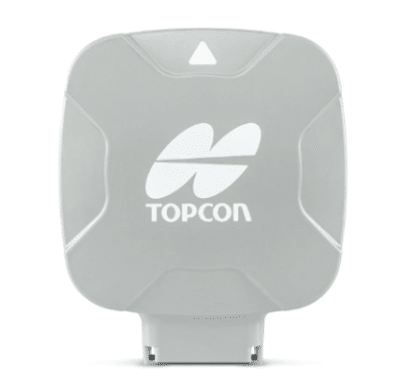

    • Economical entry level manual guidance GNSS receiver
    • 224 channels
    • Commercial grade antenna element
    • Multi-constellation (including Galileo, BeiDou, & QZSS)
    • Deutsch Connector (same as AGI-4 & AGS-2)
    • Compact Size
    • IP69K
    • Fit standard AGS-2 bracket or magnet mounting w/ 3M tape option

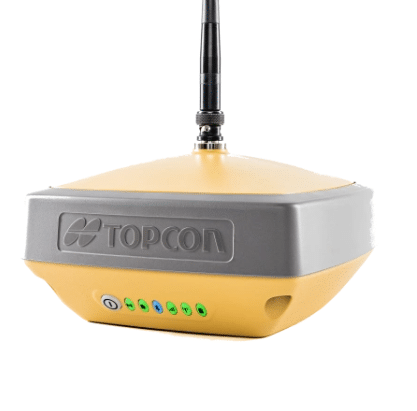

    Versatile GNSS receiver

    • Universal tracking technology for all satellites and constellations (GPS, GLONASS, Galileo, Beidou, IRNSS, QZSS, SBAS) covering all modernized signals
    • Field tested, field ready IP67 design
    • Compact form factor ideal for Millimeter GPS and Hybrid Positioning
    • Revolutionary 9-axis IMU and ultra-compact 3-axis eCompass
    • Integrated 400 MHz UHF Tx/Rx Radio Modem
    • Integrated License free 900 MHz Radio Modem, FH915 protocol

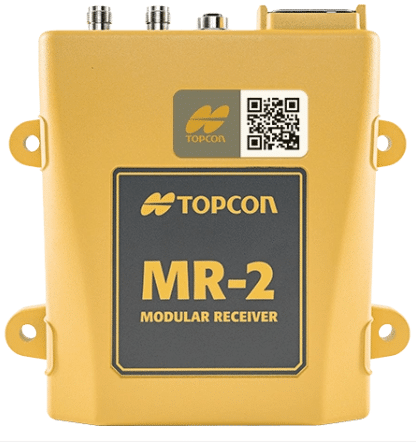

    Flexible, Modular GNSS Receiver

    The Topcon MR-2 is a versatile GNSS solution, and can be used as an RTK Infrastructure Receiver, a Modular Mobile RTK Base Station, a receiver for Marine Navigation, or a positioning device for Mobile Mapping. It is built for harsh environments, offering IP67 dust and water protection, as well as a superior level of vibration and shock tolerance (MIL spec). All of this in an industry-leading small form factor, helping it fit in any environment.

    Features & Benefits

    • Rugged waterproof and dustproof housing
    • Future-proof tracking of GPS, GLONASS, Galileo, BeiDou and QZSS
    • 226 Universal Tracking Channels
    • Precise RTK positioning
    • Dual antenna inputs support superior heading determination
    • High-speed Ethernet communication
    • 8 GB of internal memory for raw data logging
    • 1PPS for accurate reference source for external devices

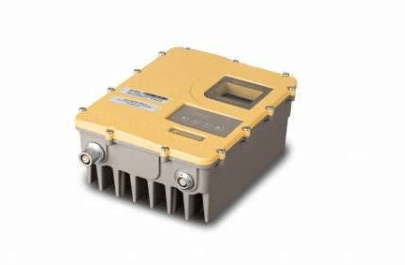

    35W Base Radio/Repeater

    Pushing out 35 watts, the SRL-35 provides reliable signal strength in the most challenging of environments. Built to IP67 standards, the light and portable radio features a weather-protected LCD display, integrated operator keyboard, and reinforced connectors.

    • Customizable output power up to 35Watt
    • Wide operating range of 403 MHz to 473 MHz
    • User selectable channel spacing (12.5, 20 or 25 kHz)
    • Multi-function user interface
    • Automatic prevention of overheating
