| Features | Model 2027G3-7 | Model 2030G3-7 |
|---|---|---|
| Slide Tubes | Double Pair | Double Pair |
| Maximum Raking Width | Up to 27′ | Up to 30′ |
| Transport Width | 10′-9″ | 10′-9″ |
| Overall Length | 19′-5″ | 20′-2″ |
| Approximate Weight | 5100 lbs | 5600 lbs |
| Tire Size | (4) LT235/75R15 | (4) LT235/75R15 |
| Rubber Mounted Tines | Standard: 154 per basket Optional: 224 per basket | Standard: 175 per basket Optional: 259 per basket |
| Basket Reel Speed | Maximum 90 RPM | Maximum 90 RPM |
| Tine Bar Bearings | Precision Sealed ball bearings | Precision Sealed ball bearings |
| Hydraulic Requirement | 12 gallons/minute @ 2000 PSI Tractor with single hydraulic remotes | 12 gallons/minute @ 2000 PSI Tractor with single hydraulic remotes |
| Operating Speed | Up to 10 MPH | Up to 10 MPH |
| Gauge Wheels | Optional Front and Rear |
Models

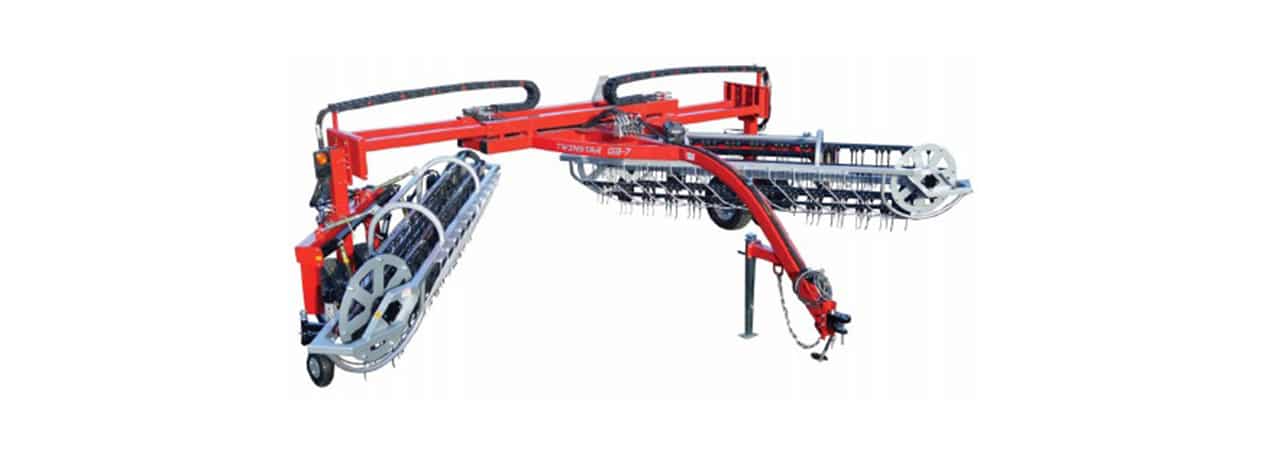

The Twinstar Generation 3 Basket Rake
Features
- Seven-function electric/hydraulic valve and control box plus baskets on / off switch
- Independent raising & lowering of left / right baskets or together
- Faster raising & lowering of baskets
- Higher torque basket drive motors are standard equipment
- New time-tested solid rubber gauge wheels
- Split hoses with JIC fittings at end of slide tubes for serviceability
- Improved double-shear angle cylinder mounts
- Transport light kit per ASABE / ANSIS279
- Baskets equipped with 30″ diameter drive & idler wheels 3/8″ high strength steel
- Baskets make fluffier, more uniform windrows for faster drying time
- 7 Tine Bar design allows for higher ground speeds up to 10 MPH
- Baskets are designed to handle heavier crops
- 7 Bar Baskets allow the operator to rake longer in the day, accomplished by slowing basket RPM speed which minimizes leaf loss
- Hydraulic drive motors are mounted to a separate bearing housing and shaft assembly which in turn is mounted to the drive wheel and basket assembly for increased strength & reliability
- Basket rake assemblies are equipped with torsion axles which provide a superior suspension versus spring protection
- Basket Frames are designed for durability & are equipped with gauge wheel mounting brackets front and rear
- Parallel basket linkage provides heavy-duty basket support and precision alignment
- Idler end of the basket is equipped with a self-aligning idler hub. This unique feature ensures precision tine bar, bearing and hub alignment which provides years of trouble free service
